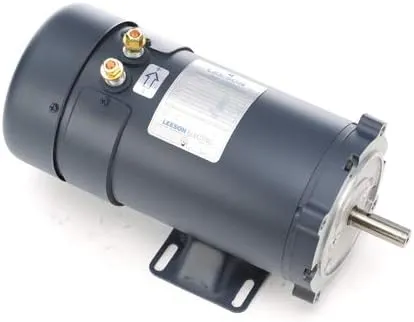

- Motor Family:-Permanent Magnet - Low Voltage
- Motor Type:-Brushed
- Horsepower:-1 hp
- Full Load Efficiency:-77.90 %
- DC Armature Voltage:-12 V
- Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
- Heavy-duty, stamped steel, bolt on base (Removable)
- NEMA C face mounting flange at no additional cost; High strength rolled steel frame
- Rugged die cast endshields with steel bearing inserts
- Permanently lubricated sealed ball bearings
- Convert to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions with modification kits shown below
- High starting torques for heavy load applications
- Linear speed torque characteristics throughout the speed range
- Capable of dynamic braking for faster stops
- Reversible rotation; Simple two lead connection
Specifications:
- Motor Family:-Permanent Magnet - Low Voltage
- Motor Type:-Brushed
- Horsepower:-1 hp
- Full Load Efficiency:-77.90 %
- DC Armature Voltage:-12 V
- Base RPM:-1800 rpm
- Enclosure Type:-TEFC (Totally Enclosed Fan Cooled)
- Duty / Condition Type:-Continuous Duty
- NEMA / IEC Frame Size:-XS56C
- Thermal Protection:-None
- Field Full Load Current:-80.00 A
- Shaft Diameter:-0.63 in
- Shaft Rotation:-Reconn
- Motor Length Less Shaft:-8.50 in
- Overall Length (C-Dimension):-13.81 in
- Insulation Class:-H
- Mounting Type:-Rigid C-Base
- Service Factor:-1.00
- Operating Temperature Range:-40 °C
- Standards Met:-CSA, UL Recognized
- Drive End Bearing Size:-6203
- Opposite Drive End Bearing Size:-6203
- Weight:-37 lbs
